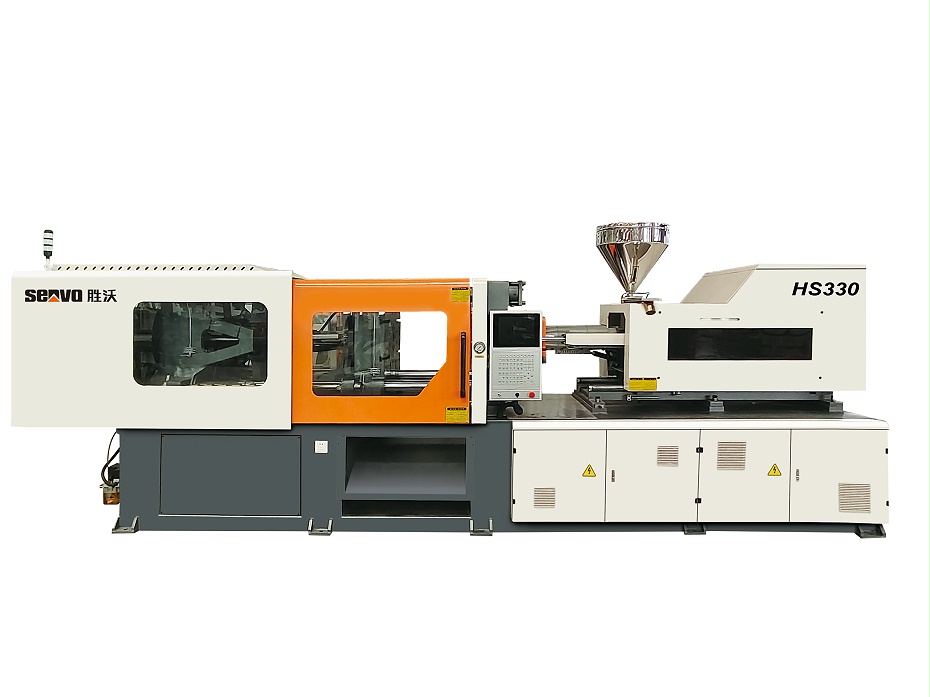

特点介绍:
1、全电动射台在保证高射速的同时,注射精度及动作响应速度均比油压机成倍数级提升,机器生产稳定性大幅度提升,并且产品克重精度高。
While ensuring high firing rate, the all-electric shootingplatform improves the injection accuracy and actionresponse speed by multiple times compared with thehydraulic press, which greatly improves the productionstability of the machine and has high product weightaccuracy。
2、油电组合方式相比传统的双油泵方式节能优势明显,并且可以选择开储同步动作使用,进一步减少模生产周期,实现高产出低能耗,产品工艺与模生产周期相同的情况下能耗节约25-35%。
Compared with the traditional double oil pump mode,the oil-electricity combination mode has obviousenergy-saving advantages, and it can be used bysynchronous operation of opening and storing, furtherreducing the mold production cycle, realizing highoutput and low energy consumption, and saving energyconsumption by 25-35% under the condition that theproduct technology is the same as the mold productioncycle。
3、大排量油泵系统生产中始终处于高速高压状态,零部件疲劳度及故障率高,油电混合机器的液压系统生产中使用标准机的压力速度,机器使用寿命延长故障率低。
The production of large displacement oil pump systemis always in a state of high speed and high pressure,and the fatigue and failure rate of parts are high. Thepressure speed of standard machine is used in theproduction of hydraulic system of oil-electric hybridmachine, so the service life of the machine is prolongedand the failure rate is low。
技术参数表SPECIFICATION | IU200 | IU400 | IU760 | IU1200 | IU1700 | IU2800 | IU4200 | ||||||||||||||||||||||||
注射部分INJECTIONUNIT | A |
B |
C | A | B | C | A | B | C | A | B | C | A | B | C | A | B | C | A | B | C | ||||||||||
注射容积ShotWeight |
cm3 |
82 | 103 | 127 | 166 | 212 | 276 | 333 | 416 | 530 | 552 |
688 |
863 | 740 | 929 | 1140 | 1228 | 1549 | 1860 | 1848 | 2413 | 2919 | |||||||||
注射量(PS)InjectionWeight | g | 74 | 94 | 116 | 151 | 193 | 252 | 303 | 380 | 482 | 502 | 625 | 785 | 673 | 846 | 1038 | 1118 | 1410 | 1700 | 1682 | 2200 | 2656 | |||||||||
螺杆直径ScrewDiameter | mm | 24 | 27 | 30 | 31 | 35 | 40 | 42 | 47 | 53 | 52 | 58 | 65 | 58 | 65 | 72 | 65 | 73 | 80 | 70 | 80 | 88 | |||||||||
螺杆长径比ScrewL/DRatio | Sc | 28:1 |
25:1 |
22:1 | 28:1 | 25:1 | 22:1 | 27:1 | 24:1 | 22:1 | 27:1 | 24:1 | 22:1 | 27:1 | 24:1 | 22:1 | 27:1 | 24:1 | 22:1 | 27:1 | 24:1 | 22:1 | |||||||||
对空注射速率InjectionRate | cm3/s | 159 | 200 | 247 | 264 | 337 | 439 | 485 | 607 | 773 | 425 | 530 | 664 | 530 | 664 | 815 | 598 | 755 | 905 | 693 | 905 | 1095 | |||||||||
最大注射压力 Maximum injection pressure |
Mpa |
238 | 188 | 152 | 235 | 185 | 141 | 230 | 183 | 144 | 225 | 180 | 144 | 226 | 180 | 147 | 228 | 181 | 150 | 229 | 175 | 145 | |||||||||
最大保压压力Maximum holding pressure | Mpa | 191 | 150 | 122 | 188 | 147 | 113 | 185 | 146 | 115 | 180 | 143 | 115 | 181 | 144 | 118 | 183 | 145 | 120 | 183 | 140 | 116 | |||||||||
最大塑化能力(PS) PlasticzationCapacity | g/s | 10 | 13 | 16 | 17 | 25 | 31 | 35 | 48 | 66 | 60 | 90 | 115 | 90 | 113 | 139 | 83 | 105 | 130 | 96 | 123 | 151 | |||||||||
注射行程 Injection Stroke | mm | 180 |
220 |
240 | 560 | 280 | 370 | 480 | |||||||||||||||||||||||
最大螺杆转速 Max Screw Speed | rpm | 400 | 400 | 400 | 400 | 400 | 220 | 200 | |||||||||||||||||||||||
注射最大速度 Injection Speed | mm/s | 350 | 350 | 350 | 200 | 200 | 180 | 180 | |||||||||||||||||||||||
注射+储料电机功率Injection and storage motor power | Kw | 30+8.5 | 34+14 | 47+26 | 58+37 | 68+45 | 75+55 | 85+65 | |||||||||||||||||||||||
电热功率 Heater Power | Kw | 15 | 15 | 22 | 26 | 30 | 35 | 40 | |||||||||||||||||||||||
温度控制区数 No.ofHeaterControlZone | zone | 5 | 5 | 5 | 5 | 5 | 6 | 6 | |||||||||||||||||||||||
合模部分CLAMPINGUNIT |
|
|
|
HS130 |
|
|
|
HS170 |
|
|
HS220 |
|
|
HS260 |
|
|
HS330 |
|
|
HS400 |
|
|
HS530 |
|
|
HS650 |
|
|
HS880 |
|
|
合模力 ClampingForce | Kn | 1300 | 1700 | 2200 | 2600 | 3300 | 4000 | 5300 | 6500 | 8800 | |||||||||||||||||||||
最大移模行程ClampingStroke | mm | 380 | 430 | 500 | 550 | 620 | 730 | 850 | 950 | 1100 | |||||||||||||||||||||
拉杆内间距SpaceBetweenTieBar(WxH) | mm | 430*410 | 470*470 | 540*530 | 610*570 | 680*660 | 730*730 | 840*820 | 940*920 | 1160*1020 | |||||||||||||||||||||
最大模板距离Max.Daylight | mm | 840 | 930 | 1050 | 1180 | 1300 | 1530 | 1700 | 1900 | 2200 | |||||||||||||||||||||
容模厚度(最小-最大)MaxMoldHeight(Min-Max) | mm | 145-460 | 145-500 | 160-550 | 180-630 | 220-680 | 280-800 | 280-850 | 380-950 | 400-1100 | |||||||||||||||||||||
顶出行程EjectorStroke | mm | 120 | 120 | 140 | 160 | 180 | 200 | 220 | 260 | 300 | |||||||||||||||||||||
最大顶出推力EjectorForce | Kn | 34 | 34 | 68 | 99 | 125 | 125 | 152 | 182 | 232 | |||||||||||||||||||||
系统压力 System Pressure | Kw | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | |||||||||||||||||||||
油泵电机功率Pump Motor Power |
Kw |
18.5 | 18.5 | 25 | 31 | 37 | 47 |
65 |
47+31 | 65+31 | |||||||||||||||||||||
其他OTHERS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
油箱容量OilTankCapacity | L | 200 | 200 | 300 | 400 | 450 | 600 | 700 | 900 | 1000 | |||||||||||||||||||||
理论重量MachineWeight | T | 4.5 | 5.5 | 7 | 9 | 12.5 |
15.5 |
21 | 26 | 40 | |||||||||||||||||||||
外型尺寸MachineDimension(LxWxH) | M | 4.7x1.3x1.9 | 5.2x1.4x1.9 | 6x1.45x2 | 6.3x1.56x2.2 | 6.6x1.63x2.2 | 7.2x1.75x2.2 | 8.3x1.9x2.2 | 9.2x2.1x2.4 | 10.5x2.5x2.5 |
本网站所有技术参数仅供参考,本公司保留修改技术参数的权利,恕不另行通知。All technical parameters of this website are for reference only. The company reserves the right to modify the technical parameters without notice.
高排量的液压系统设计,动力系统加大,注射速度比同类型产品提高15%,模循环周期缩短10-15%,全面提升注塑机表现,可满足高标准的成型要求
油路板分布在各执行元件位置,响应速度快,动态性能好,注塑过程更快速,产品成型更好
注射单元采用模组化的托板座设计,一线式双缸平衡注射装置,使螺杆在注塑过程中受力均匀,显著提高射胶稳定性,使料筒定位更加准确
高刚性的宽模板设计,配合高安全系数的拉杆,整体提升合模结构的刚性及稳定性
伺服驱动器在锁模保压冷却等阶段能输出最大压力但保持速度接近零速,因而功率消耗小,更节能
料筒采用纳米远红外高效节能加热装置,改善了传统加热圈电热转换效率低、热传导率低、表面温度高“两低一高”缺点,比传统加热圈节能30%-40%
控制面板采用彩色屏幕,实时监测生产进程,并显示各种故障诊断,操作更省心
人性化工艺参数设置,设置急停开关,动作全面监控,保护工作人员人身安全
